Pinion gear racks are essential components in mechanical systems that convert rotational motion into linear motion. Here's a brief overview and some applications:
What is a Pinion Gear Rack?

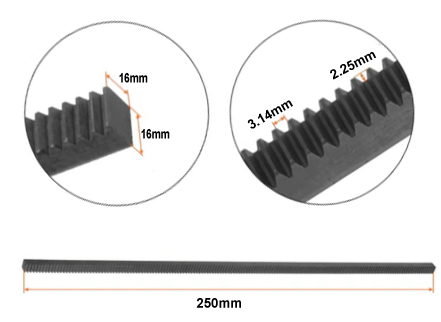

Components: A pinion is a small gear that meshes with a linear gear, known as a rack. The rack is essentially a flat, toothed bar.
Function:
When the pinion rotates, its teeth engage with the teeth on the rack, causing the rack to move linearly. This creates a precise and efficient means of transferring motion.
Applications of Pinion Gear Racks
1. Automotive Steering Systems:
Rack and Pinion Steering: This is a common application in vehicles, where the rotational movement of the steering wheel is converted into linear movement to turn the wheels.
2. CNC Machines:
- Used in computer numerical control machines to precisely move tools along a linear path for cutting, engraving, and milling operations.
3. Industrial Automation:
- Employed in conveyor systems and robotic arms, allowing for accurate and controlled linear motion.
4. Elevators and Lifts:
- Used in the drive mechanism to raise and lower the cabin smoothly.
5. Material Handling Equipment:
- In forklifts and pallet jacks for lifting and positioning loads efficiently.
6. Home Automation:
- Applications include automated blinds and curtains, where the linear movement is needed for opening and closing.
7. Machinery:
- Found in various types of machinery for precise positioning and movement, such as in printing presses and packaging machines.
Advantages
Efficiency: Provides a direct and efficient method of motion conversion.
Precision: Allows for accurate linear movement, essential in many applications.
Simplicity: Simple design leads to easier maintenance and reliability.
Overall, pinion gear racks are versatile components with wide-ranging applications across various industries, offering effective solutions for motion control.
